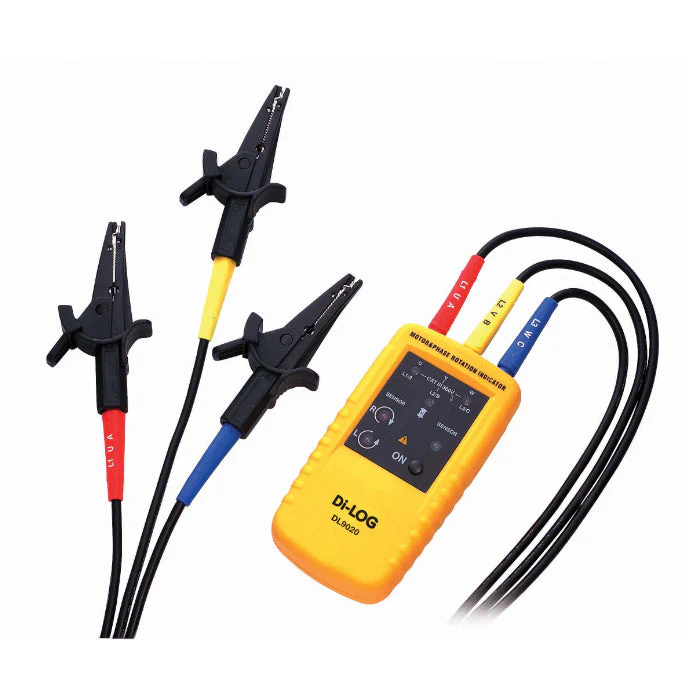

Di-Log DL9020N Phase & Motor Rotation Meter

Phase & Motor Rotation Meter

Di-Log DL9020N

• Determine motor and phase connection
• Non contact phase rotation indication
• Determine phase rotation direction
• Wireless
• Supplied with croc clips

The Di-Log DL9020N is a must-have for any motor or phase connection work. With non-contact phase rotation indication and the ability to determine phase rotation direction, this meter brings efficiency to your workflow. Its wireless design and included croc clips make it a versatile and convenient tool. Gain accuracy and save time with the DL9020N.

.



Dimensions	128mm(h) x 68mm(w) x 30mm(d)
Electeical Safety	DIN, VDE 0411, IEC 61010, EN61010; IEC 61557-7
Frequency range	2 – 400 Hz
IP Rating	IP40
Measurement	Range
Nominal test current (per phase)	<3.5 mA
Nominal voltage phase indirection	120V - 400V AC
Nominal voltage rotary direction	1V – 400 V AC
Power supply	Mains supply
Warranty	2 Years
