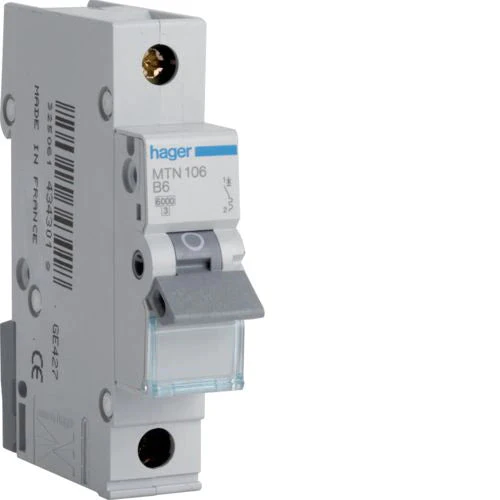

Hager Single Pole 6kA B Curve MCB

Type B tripping characteristics complies with BS EN 60898.
Calibration temperature 30°C
Breaking capacity: 6kA
Connection capacity: Rigid conductor 25mm2, Flexible conductor 16mm2

Introducing the Hager Single Pole 6kA B Curve Miniature Circuit Breaker (MCB) – a dependable and essential component designed to provide robust protection for electrical circuits. Crafted by Hager, a renowned name in electrical solutions, this Single Pole MCB with a 6kA breaking capacity and B curve characteristics is tailored for efficient defence against overloads and short circuits in various residential, commercial, and industrial applications.

Dimensions	(W)17.5 mm
Guarantee	2 Years
Incoming Terminal Capacity	25mm²
Mounting	Din Rail
Number of Modules	1
Number of Poles	Single Pole
Outgoing Terminal Capacity	25mm²
Packaging Types	Each
Product Range	MCBs
Short Circuit Rating	6kA
Standards	BS EN 60898
Tripping Characteristics	B Curve
Voltage Rating	230V
Weight	0.0929kg
Width	17.5mm
