CK QCTBD230V Eibenstock Clipacore The Boss Diamond Core Drill 230v

Eibenstock Clipacore The Boss Diamond Core Drill 230v

CK QCTBD230V

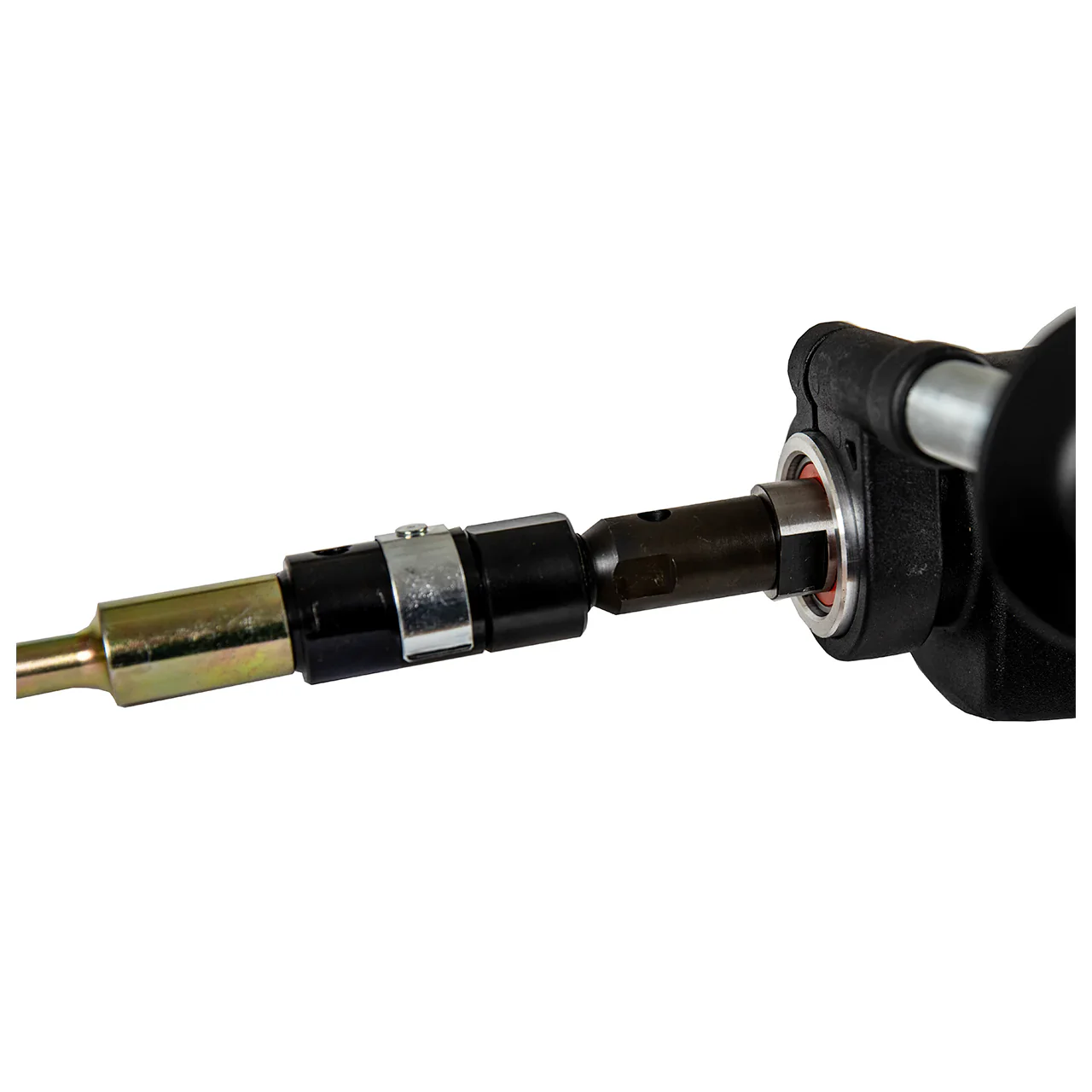

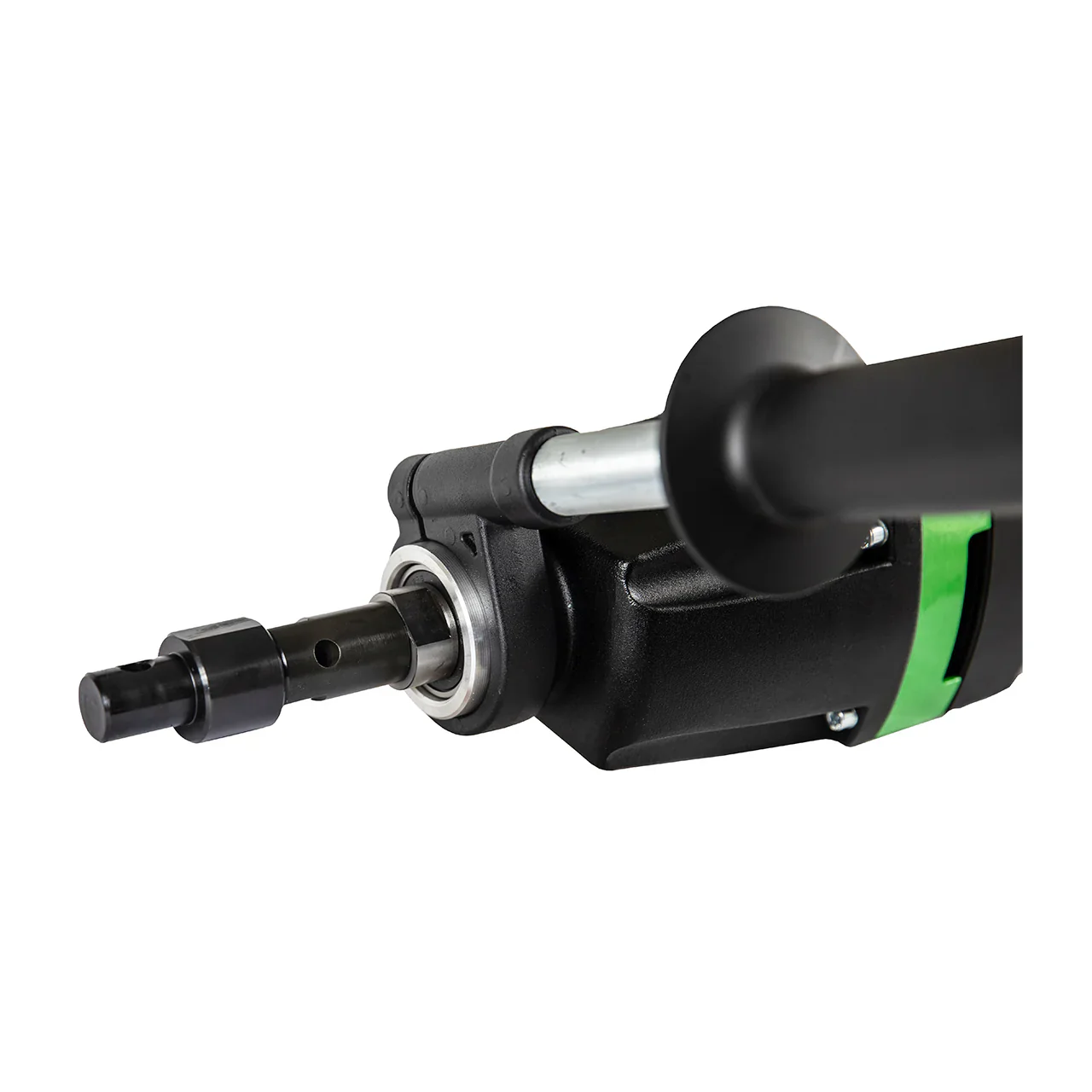

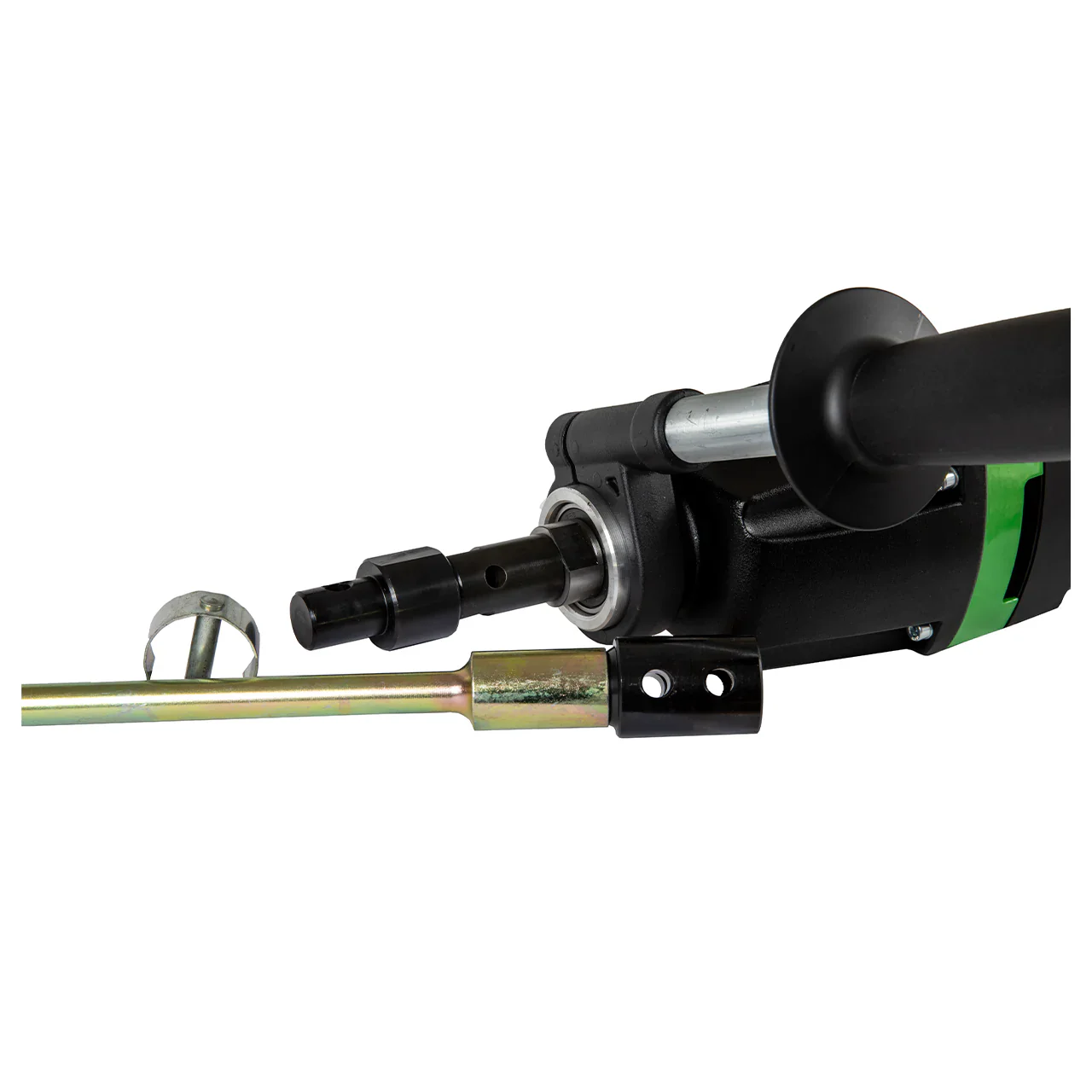

• Clipacore Quick Release Core Drill Adaptor designed for interchangeable core bits
• Variable Handle Adjustment on Collar
• Powerful 2 speed gear box, 1,000 RPM / 2,000 RPM
• Electronic Soft Start Temperature Control and Current Cut-Off
• Mechanical Safety Clutch
• 230v
• Equipped with a mechanical, electrical and thermal overload protection

The CK QCTBD230V Eibenstock Clipacore The Boss Diamond Core Drill 230v offers professional-grade performance with a 1700W power output and two-speed gearbox delivering 1,000 or 2,000 RPM. Its quick-release core drill adaptor allows rapid bit changes, while the variable handle adjustment on the collar ensures optimal control. Built with mechanical, electrical, and thermal overload protections alongside a safety clutch, it safeguards both user and equipment. With a maximum drilling diameter of 152 mm and low hand-arm vibration below 2.5 m/s², it provides precision and comfort. Supplied in a protective metal case, this drill is engineered for demanding applications.

.

Rated Speed	Gear I - 1000rpm Gear II - 2000rpm
Max. Drilling Diameter	Gear I - 152mm Gear II - 82mm
Collar Diameter	53mm
Power Output	1700W
Typical Hand-Arm Vibration	<2.5 m/s²
Frequency	50/60 Hz
IP Rating	IP20
Guarantee	1 Year
Weight	6.8kg
